MX24R
The roots of riding bicycles on dirt are firmly planted in BMX racing and trail riding. And for some, riding anything other than a cro-moly BMX frame is out of the question.
The Dialled Bikes MX20R (and it's big brother cruiser version) is a top of the line cro-moly race frame made of premium quality Reynolds 853 double butted air hardened cro-moly steel tubing.
There are no unnecessary flourishes or over-fancy design elements going on with this frame. Just a simple yet elegant double diamond hardtail design that will rip up the track and flow through the trails with consummate ease.
A ring reinforced machined cro-moly head tube, Euro BB, v-brake mounts and 4mm laser cut dropouts round off this modern day classic.
MX24R builds

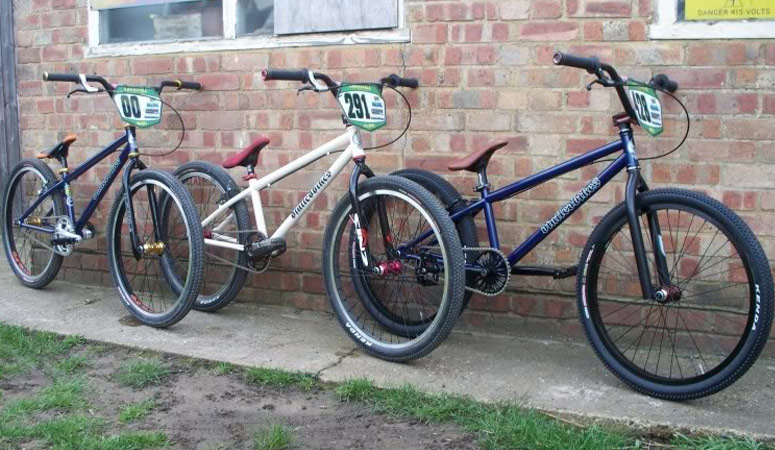

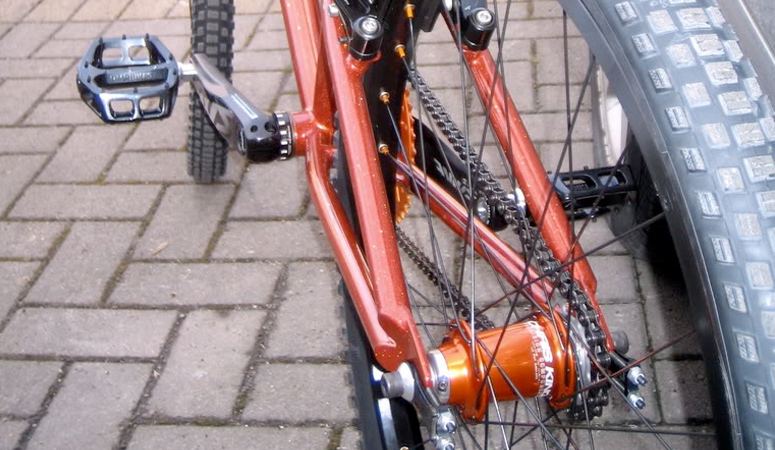

As with all Dialled Bikes frames you can put them together to suit the way you ride. Take a look at some MX24R builds here.
MX24R specification
- Size:
- 21.5" Top Tube
- Tubing:
- Reynolds 853 double butted air hardened cro-moly front triangle, 4130 cro-moly rear triangle
- Head Angle:
- 72.5 degrees
- Seat Angle:
- 72 degrees
- Chain Stay Length:
- 15" to 15.79"
- BB Height:
- 11.7"
- Seat Post Size:
- 27.2mm
- Seat Clamp Size:
- 30mm
- BB Shell:
- 68mm
- Colours (subject to change without notice):
- Metallic Blue
£325 including UK mainland delivery
To order a Dialled Bikes product, please e-mail us to check availability and current colours/prices.
