Holeshot
At Dialled Bikes we love to race, that's why we started the Dialled Bikes BMX and 4X teams shortly after starting the company.
The natural progression was to design a 4X specific frame for the team, so we worked together to create the Holeshot. Now one of the most popular frames on the UK 4X circuit.
Holeshot riders have probably racked up more podium finishes at UK 4X races over the last 3 seasons than owners of any other bike. It makes sense, why race 4x on a lightweight/weak cross country frame or a heavy dirt jumper when there's a proper tool for the job? The Holeshot is made of Reynolds 520 double butted cro-moly tubing and designed to roll on a 440mm rigid fork or a 80-120mm suspension fork.
Of course, you don't have to limit your use of the Holeshot to 4X racing, it also makes a great F.A.B (f*ck-about-bike). A Holeshot frame weighs about 5lbs.
Frame detail

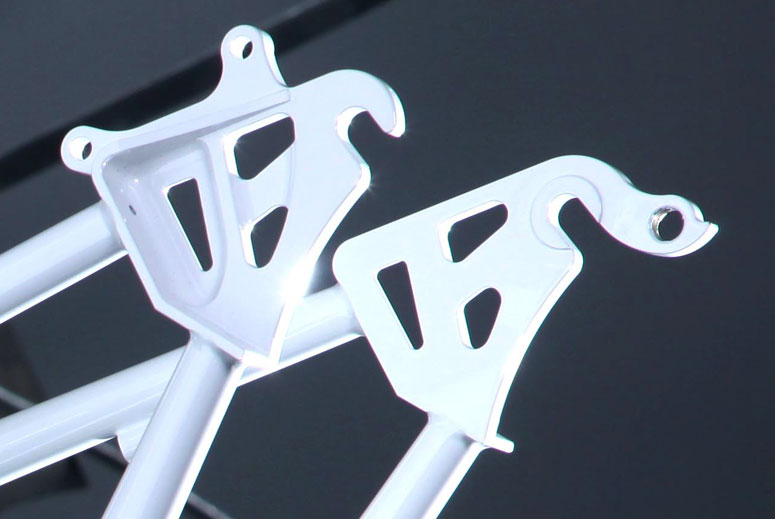

One piece CNC heat treated cro-moly dropouts
Holeshot builds
As with all Dialled Bikes frames you can put them together to suit the way you ride. Take a look at some Holeshot builds here.
Holeshot specification
- Sizes:
- 21.5" TT & 22.3" TT (both 13.5" seat tube - centre to top)
- Tubing:
- Reynolds 520 double butted cro-moly front triangle, ring reinforced cro-moly head tube, 4130 cro-moly seat stays and chain stays
- Head Tube Length:
- 115mm
- Head Angle:
- 69 degrees
(100mm suspension or 440mm rigid) - Seat Angle:
- 73 degrees
- Chain Stay Length:
- 16.25"
- BB Height:
- 12.5"
- Seat Post Size:
- 27.2mm
- Seat Clamp Size:
- 30mm (29.8 may also fit)
- BB Shell:
- 73mm with integral ISCG
- Max Rear Disc Size:
- 165mm
- Colours (subject to change without notice):
- Racing Red & Pale Blue
£280 including UK mainland delivery
To order a Dialled Bikes product, please e-mail us to check availability and current colours/prices.
